EV DICTIONARY | The All-Encompassing Lexicon of EV Terminology, Part 3

Buckle up! We’ve got another round of EV lingo that you’ll be encountering sooner than you think! Whether you’re pondering a retrofit or giving your OEM electric ride a makeover, these terms and acronyms are equally essential. But don’t fret. We’re making this as simple as possible. Working on EVs isn’t necessarily more complicated than ICEs, it just requires a little extra protection.

MANUAL SERVICE DISCONNECT

This tool-free disconnect, fused to the high-voltage battery pack, shields technicians and emergency response teams working with electric vehicles. By directly linking to the high-voltage battery, it separates the pack from the rest of the EV and guards high-voltage cables from short-circuiting during disconnection.

CYCLE LIFE

The number of charge-discharge cycles a battery cell can endure before its performance deteriorates.

BIDIRECTIONAL CHARGING

An electric vehicle charging method that transforms direct current from a high-voltage battery into alternating current for powering AC devices or homes, and in some instances, feeding AC energy back into the power grid.

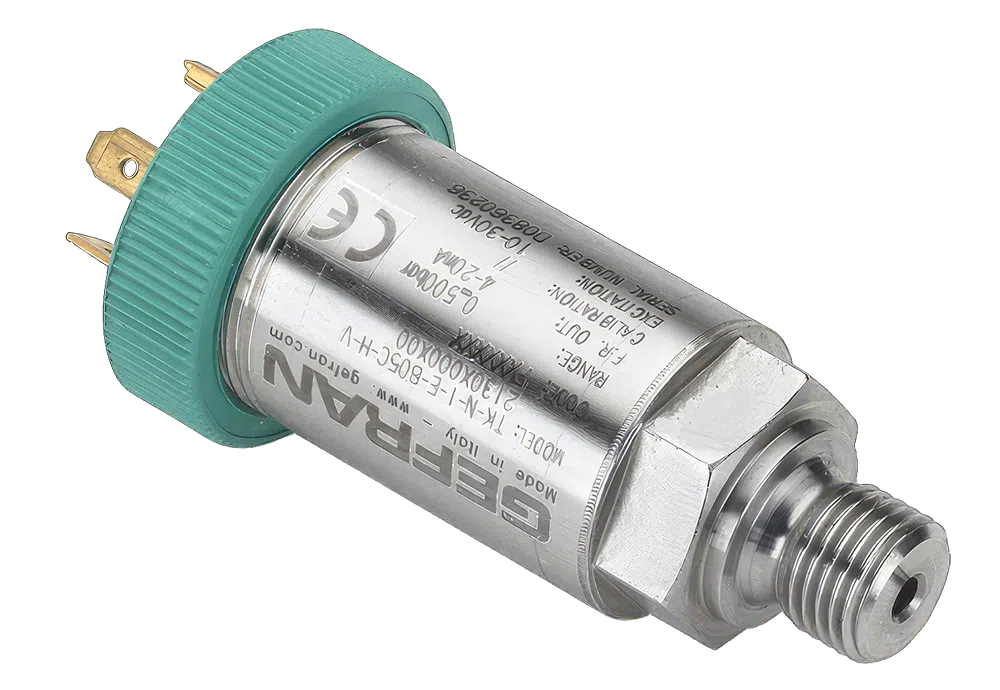

TRANSDUCER

A machine that transforms energy from one form to another, like converting pressure, temperature, or physical position into an electrical signal in the case of a brake pressure transducer in most electric vehicles.

PASSIVE COOLING

A method of cooling components, such as the battery or other parts in an electric vehicle, that utilizes natural conduction, convection, and radiation.

ACTIVE COOLING

A heat management technique that employs external devices to boost heat transfer, which can include fan cooling or, in most electric vehicle systems, forced liquid cooling.

BUSBAR

A metal bar or strip that serves as a grounding and electrical conduit for distributing high-current power in close proximity, including between battery modules.

BACK EMF

A counter electromotive force that increases in an electric motor the faster it rotates. This reduces the working voltage of the vehicle, which reduces the amount of power reaching the wheels. Working voltage is typically the result of the supply voltage minus back electromotive force.

CANBUS NETWORK

A Controller Area Network (CAN) bus is a vehicular communication network that enables seamless communication between multiple microcontrollers and devices, all without needing a central authority like a host computer or controller.

CLONE FILE

A software bundle with preconfigured parameters that streamlines the process of setting up electric vehicle components.

ELECTRICAL ARC

A phenomenon occurring when an electrical current travels through air between two conductors, causing the current to deviate from its intended path and jump from one conductor to another. An arc is a type of short circuit that is accompanied by a visible light and heat display.

HV INTERLOCK

A safety aspect in electric vehicles that safeguards people during various stages, including assembly, repair, maintenance, and operation. It employs a low-voltage circuit to scrutinize the high-voltage circuit’s integrity. If the low-voltage signal is disrupted due to a flawed or loose high-voltage connection, a fault code pops up to alert the operator.

LOCK OUT, TAG OUT (LOTO)

A safety protocol that guarantees hazardous equipment is turned off securely and cannot be restarted before maintenance or repair work is finished

LOSS OF ISOLATION

An electrical divide between two circuits established by an infinite or exceptionally high insulation resistance, creating a lack of electrical connection between the two. This isolation is crucial in preventing hazardous ground loops, which can cause noise and endanger the vehicle’s safety when the grounds of two separate circuits have varying electrical potentials. A loss of isolation occurs when two distinct circuits with differing voltages connect.

---



FREQUENTLY ASKED QUESTIONS

What is an electric vehicle (EV)?

An electric vehicle (EV) is a mode of transportation that relies solely on electric energy for propulsion. Unlike traditional cars that use internal combustion engines powered by gasoline or diesel, EVs are equipped with electric motors and batteries. This allows them to operate without emitting harmful pollutants, making them an eco-friendly alternative to conventional automobiles.

Key Components of an EV

• Electric Motor:Converts electrical energy into mechanical energy to drive the vehicle.
• Battery Pack:Stores the electrical energy needed to power the motor. Most modern EVs use lithium-ion batteries due to their efficiency and capacity.
• Charging System:Connects the vehicle to an external power source, allowing the battery to recharge.

Benefits of Electric Vehicles

1. Environmental Impact:EVs produce zero tailpipe emissions, significantly reducing air pollution.
2. Cost Efficiency:Lower operational costs compared to gasoline vehicles, as electricity is generally cheaper than fuel.
3. Low Maintenance:Fewer moving parts mean less wear and tear, resulting in reduced maintenance needs.

Types of Electric Vehicles

• Battery Electric Vehicles (BEVs):Fully powered by electricity with no internal combustion engine.
• Plug-in Hybrid Electric Vehicles (PHEVs):Combine an electric motor with a traditional engine, allowing for flexibility between electric and fuel power.
• Hybrid Electric Vehicles (HEVs):Primarily rely on a conventional engine but include a battery to enhance fuel efficiency through short electric drives.

Electric vehicles are increasingly popular due to advancements in technology, improved range, and a growing network of charging stations. With companies like Tesla, Nissan, and BMW pioneering the market, EVs represent a significant shift towards sustainable transportation.



What is the purpose of a wireless battery management system in EVs?

A wireless battery management system (wBMS) in electric vehicles is designed to enhance the efficiency and longevity of the battery pack. These systems primarily function to:

• Optimize Performance: By fine-tuning and balancing the chemistry within individual battery cells, a wBMS ensures that each cell performs at its best, which in turn boosts the overall efficiency of the vehicle’s battery.
• Monitor Battery Health: Through real-time diagnostics, it continually checks the health of the battery pack. This allows for immediate adjustments and maintenance to prevent potential issues.
• Adapt to Changes: A wBMS can dynamically reorganize the network of battery modules and sensors as required. This adaptability safeguards the battery’s health, thus extending the lifespan of the vehicle’s power source.

In essence, a wireless battery management system is crucial for maintaining the optimal function and durability of electric vehicle batteries.



How is an EV battery recharged?

An electric vehicle (EV) battery gets its energy replenished through a straightforward yet essential process of plugging it into a power source. Here’s how it works:

1. Charging at Home: Many EV owners opt for the convenience of charging their vehicles at home. This involves connecting the car to a residential electrical outlet, often using a specially installed home charging station. This can be a simple Level 1 charger, which uses standard household outlets, or a more robust Level 2 charger that provides faster charging times with higher voltage.
2. Public Charging Stations: For those on the go, public charging stations are widely available in urban areas, parking lots, and along highways. These stations can offer both Level 2 chargers and rapid charging options. Fast chargers, also known as DC fast chargers, significantly reduce waiting time by providing a quick energy boost.
3. Workplace Charging: Some businesses offer charging stations for employees, combining daily commutes with convenient battery top-ups. This increasing workplace facility is a step towards sustainable commuting options.

By utilizing these various charging options, EV owners can ensure their battery remains powered up, optimizing performance while minimizing downtime.



How does DC fast charging work and what are its benefits?

Understanding DC Fast Charging and Its Benefits

DC fast charging is a game-changer for electric vehicle (EV) drivers, offering a quicker way to recharge their batteries compared to traditional methods. But how exactly does it work, and why is it beneficial?

How Does DC Fast Charging Work?

1. Direct Connection to High Voltage Battery: Unlike AC charging, which relies on the vehicle’s onboard converter to convert electricity, DC fast charging connects directly to your car’s high voltage battery through an external charger. This bypasses the vehicle’s onboard charging system, enabling much higher power transfer.
2. High Power Transfer: This method delivers power typically exceeding 50 kW, allowing for rapid energy replenishment. Specialized equipment at public charging stations facilitates this process, making it primarily accessible outside of home environments.
3. Reduced Charging Time: The most significant advantage is the dramatically reduced charging time. Instead of waiting for hours with a standard charger, DC fast charging can restore your vehicle’s battery in mere minutes—ideal for long trips or when you’re short on time.

Benefits of DC Fast Charging

• Convenience on the Go: Perfect for road trips or busy schedules, this method minimizes downtime and helps you quickly get back on the road.
• Wider Station Availability: Public charging stations equipped with DC fast chargers are increasingly available, especially along major highways and in urban settings. They’re often strategically placed in convenient locations for drivers.
• Future-Proofing: As EV technology advances, more vehicles are being designed to handle higher charging capacities, making DC fast charging an investment in future convenience.

DC fast charging stands out as a swift, efficient solution for powering up your EV, providing unparalleled convenience for modern drivers.



How are volts, watts, and watt-hours used as measurements in electric vehicles?

Understanding Measurements in Electric Vehicles

Electric vehicles (EVs) rely on specific units of measurement to assess and optimize their performance. Let’s break down how volts, watts, and watt-hours are integral to this process.

Volts: Driving the Electric Force

Volts are the key measure of electromotive force in an EV. They indicate the potential energy available to push electrons through the vehicle’s electrical circuits. Higher voltage typically enables more powerful performance, enhancing the car’s ability to accelerate swiftly and efficiently. This is why many modern EVs are designed with high-voltage systems, maximizing energy transfer and reducing the weight of copper wiring needed.

Watts: Power at Play

Watts measure the electrical power output, crucial for understanding an EV’s capability. Essentially, watts represent the rate at which energy is used or produced. In the context of electric vehicles, higher wattage allows for greater power output from the motor, contributing to faster speeds and more robust acceleration. For instance, Tesla’s performance models focus on maximizing wattage to deliver rapid acceleration experiences.

Watt-Hours: The Energy Equation

Specific Energy (Wh/kg)

Watt-hours per kilogram (Wh/kg) assess the specific energy of a battery, reflecting the amount of energy stored relative to its mass. A higher Wh/kg ratio means the battery can store more energy without adding significant weight, making it ideal for extending the EV’s driving range.

Energy Density (Wh/L)

Watt-hours per liter (Wh/L) measure energy density, which indicates how much energy is stored within a given volume of the battery. A higher Wh/L value means a more compact battery can store the same amount of energy, allowing manufacturers to design sleeker vehicles with longer ranges.

In Summary

Volts push the electric current throughout the vehicle. Watts power the motor’s performance, and watt-hoursdetermine how much energy the vehicle can store, affecting how far it can travel on a single charge. These measurements are essential for evaluating and enhancing the efficiency and capability of electric vehicles.



What is the significance of kilowatts and kilowatt-hours in EVs?

Understanding Kilowatts and Kilowatt-Hours in Electric Vehicles

When exploring the world of electric vehicles (EVs), you’ll frequently encounter the terms kilowatts (kW) and kilowatt-hours (kWh). Both play a crucial role in evaluating an EV’s performance and efficiency, but they address different aspects of the vehicle’s capabilities.

Kilowatts (kW)

Kilowatts measure the power output of an electric vehicle’s motor. Simply put, it’s a unit that tells you how much power an electric motor can produce at any given moment. This is analogous to the horsepower rating in traditional gasoline engines. The higher the kilowatt rating, the quicker the car can generally accelerate, translating into enhanced performance on the road.

• Example: An EV with a 100 kW motor can generate 100,000 watts of power instantaneously.

Kilowatt-Hours (kWh)

Kilowatt-hours, on the other hand, signify the energy capacity of an EV’s battery. This unit indicates how much energy the battery can store and consequently supply over time. It’s essentially a reflection of the range of the vehicle—how far it can travel on a single charge.

• Example: An EV with a 60 kWh battery can theoretically supply 60 kilowatts of power for one hour, enough to drive a specified distance depending on the vehicle’s efficiency.

Why Do They Matter?

Understanding kW and kWh is essential for making informed decisions when purchasing an EV. Here’s why:

• Performance Insight: A higher kW indicates a more powerful motor, which can enhance driving dynamics such as acceleration.
• Range Estimation: A larger kWh battery suggests a longer driving range, meaning fewer stops to recharge during long trips.
• Efficiency Evaluation: By examining both figures, you can assess how effectively an EV utilizes its stored energy to translate it into driving power.

In essence, kilowatts and kilowatt-hours provide valuable insights into what you can expect from an electric vehicle in terms of performance and endurance, making them key metrics for car buyers.



What are drive units and how do they contribute to an EV’s performance?

Understanding Drive Units and Their Role in EV Performance

Drive units are essential components in electric vehicles (EVs), combining electric motors with transmissions to deliver both horsepower and torque. These units play a critical role in defining how efficiently an EV can convert electrical energy into motion, impacting both speed and acceleration.

Key Components of Drive Units

1. Electric Motors:Provide the primary source of propulsion. They convert electrical energy stored in the vehicle’s battery into mechanical energy to turn the wheels.
2. Single-Speed Transmissions:Simplify the power transfer by optimizing the motor’s output across various driving conditions, ensuring smooth and efficient operation.
3. Power Electronics:Manage the flow of electricity from the battery to the motors, maximizing the vehicle’s performance and efficiency.

Contribution to Performance

Drive units significantly enhance an EV’s performance by offering:

• High Torque and Power Density:This means greater acceleration and pulling power, often surpassing traditional internal combustion engines.
• Efficiency:The integrated design ensures minimal energy loss, maximizing the range per charge.
• Compactness:By integrating motors and transmissions into a single unit, drive units reduce the overall weight and size of the drivetrain, allowing for more flexibility in vehicle design and potentially more space for passengers and cargo.

In summary, drive units are the heart of an EV’s drivetrain, orchestrating the seamless transfer of energy with precision and efficiency, directly influencing the vehicle’s dynamics and overall driving experience.



What are the components of battery composition in electric vehicles?

Understanding Battery Composition in Electric Vehicles

Electric vehicles rely on intricate battery systems to power their operations. Here’s a concise breakdown of their main components:

• Battery Cell: This is the fundamental building block of a lithium-ion battery. Each cell is responsible for storing and releasing electrical energy. Cells are precisely manufactured to ensure optimal performance and longevity.
• Battery Module: Cells are grouped together to form a module. This arrangement allows for better management of electrical currents and thermal conditions. Modules are designed to facilitate monitoring and controlling of cell temperatures and key performance parameters.
• Battery Pack: The battery pack is the complete system within an electric vehicle. It integrates multiple modules into a cohesive unit. The pack includes an outer enclosure, high-voltage components, and various structural and protective elements. These features work together to ensure safety, efficiency, and effective energy management.

By combining these components, electric vehicles are equipped with a sophisticated energy source that powers modern transportation efficiently and sustainably.



What are the features of next-generation EV batteries and platforms?

Features of Next-Generation EV Batteries and Platforms

Next-generation electric vehicle (EV) batteries and platforms boast innovative features designed to enhance performance, flexibility, and efficiency.

Advanced Battery Cells

• Extended Driving Range:These cutting-edge battery cells are estimated to support a driving range exceeding 300 miles on a full charge, addressing range anxiety and facilitating longer journeys without frequent charging stops.
• Adaptable Arrangements:The cells can be configured in various ways using flexible modules and battery packs. This versatility is crucial for catering to current vehicle segments and even those that haven’t been conceived yet.

Modular Battery Packs

• Customizable Capacity:The battery packs can be constructed with different combinations of modules. Options range from standard configurations of 6, 8, 10, or 12 modules to complex setups of up to 24 modules by stacking two packs. This modular approach allows for tailored energy solutions for diverse vehicle needs.
• Innovative Cell Stacking:Introducing long pouch cells that can be stacked vertically or horizontally within the modules offers a strategic advantage. This design allows manufacturers to lower the cabin floor, maximizing interior space—a significant improvement over older designs using cylindrical cells with a uniform height.

These advancements signify a leap forward in EV technology, providing consumers with more efficient, spacious, and adaptable electric vehicles.



What factors influence the range of an electric vehicle?

The range of an electric vehicle (EV) can be impacted by a variety of dynamic factors. Understanding these can help drivers optimize their EV experience.

1. Temperature:Extreme hot or cold weather conditions can affect battery efficiency. Batteries tend to perform best in moderate temperatures, so significant deviations can reduce the overall range.
2. Terrain:Driving on hilly or mountainous roads requires more energy compared to flat terrain. Steep inclines can drain the battery faster as the vehicle works harder against gravity.
3. Battery Age and Health:Over time, an EV’s battery may begin to lose its ability to hold a charge, just like any rechargeable battery. Regular maintenance and proper charging habits can prolong battery life, but eventually, age will reduce its maximum range.
4. Load and Passenger Weight:The more weight an EV carries, the more energy it consumes. This includes both passengers and cargo, which can significantly decrease the range, especially on long trips.
5. Driving Habits:Aggressive driving, such as rapid acceleration and frequent hard braking, can quickly deplete the battery. Conversely, a gentle driving style can help conserve energy and extend range.
6. Usage of Vehicle Features:Utilizing features like air conditioning, heating, or entertainment systems draws additional power from the battery. Conserving these features can help maintain a higher range.

By being mindful of these factors, drivers can optimize how far they can travel on a single charge, adjusting habits and travel plans as needed to maximize efficiency.



What is the role of an anode in a battery?

Understanding the Role of an Anode in a Battery

An anode plays a crucial part in a battery’s functionality, serving as the negative side during discharge. This component is responsible for releasing electrons into the external circuit. By doing so, it initiates the flow of electric current needed to power devices.

When the battery is in use, the anode undergoes an oxidation reaction. This means that the material of the anode loses electrons. These free electrons then travel through the circuit as electricity, ultimately reaching the cathode, or the positive side of the battery.

Key roles of the anode include:

• Electron Source: It provides the electrons necessary for electric current.
• Oxidation Site: The site where oxidation occurs, releasing electrons.
• Energy Flow Initiator: Starts the flow of energy within the battery system.

In summary, the anode’s main function is to supply electrons, enabling the battery to deliver the power required by electronic devices.



What is renewable energy and how is it used in the context of electric vehicles?

Understanding Renewable Energy and Its Role in Electric Vehicles

What Is Renewable Energy?

Renewable energy is derived from sources that are constantly replenished by nature, such as sunlight, wind, rain, tides, and geothermal heat. Unlike traditional fossil fuels, which are finite and emit carbon dioxide when used, renewable energy sources can generate power sustainably and with minimal environmental impact.

Renewable Energy in the World of Electric Vehicles (EVs)

When it comes to electric vehicles, renewable energy plays a crucial role in reducing the carbon footprint associated with transportation. Here’s how:

• Solar and Wind Power:These are the two most prominent forms of renewable energy used to generate electricity critical for charging electric vehicles. Solar panels can be installed on rooftops or in large solar farms, while wind turbines harness the power of the wind in areas with high wind speeds.
• Hydropower:Often used on a larger scale, hydropower projects generate electricity through flowing water, contributing to a clean energy grid for electric vehicle charging stations.
• Geothermal and Tidal Energy:Although less common, these sources provide additional ways to produce renewable electricity, further diversifying the mix that powers EV infrastructure.

Commitments to Renewable Energy for EVs

Many companies are setting ambitious goals to integrate 100% renewable energy into their operations, ensuring that not only vehicles but also their production and support systems are sustainable. This shift involves upgrading existing infrastructure and developing new technologies that pave the way for a cleaner, more efficient future in transportation.

Using these renewable sources not only powers the vehicles themselves but also supports a holistic approach to sustainability, showing a commitment to global clean energy goals.



How does Level 1 charging differ from Level 2 charging?

Comparing Level 1 and Level 2 Charging

Understanding the differences between Level 1 and Level 2 charging can help you make informed decisions about how you fuel your electric vehicle. Both options have distinct features and cater to different needs.

Level 1 Charging: Simplicity and Convenience

• Source:Level 1 charging uses a standard 120-volt household outlet, making it accessible in most homes without the need for special equipment or installation.
• Amperage:It typically operates between 8 to 20 amps, which suffices for overnight charging.
• Portability:The charging cords are easily portable, allowing you to charge your vehicle wherever a household outlet is available. This is ideal for daily commuting if you have ample time to recharge between uses.

Level 2 Charging: Speed and Efficiency

• Installation:Level 2 charging requires a 240-volt outlet and usually entails professional installation, similar to what might be needed for large home appliances.
• Amperage:Capable of delivering up to 80 amps, it provides significantly faster charging speeds compared to Level 1. This means your vehicle can be ready to drive again in a fraction of the time.
• Versatility:While there are stationary setups, you can also find portable versions of Level 2 chargers, offering faster charging on the go.

In summary, if charging flexibility with minimal setup suits your routine, Level 1 may be adequate. Conversely, if you require quicker turnaround times and are willing to invest in an installation, Level 2 offers the speed and efficiency necessary for a more dynamic schedule.



What does “amp” mean in the context of EV charging?

Understanding “Amp” in EV Charging

When delving into the realm of electric vehicles (EVs), the term “amp” frequently arises, especially concerning charging. But what exactly does it mean?

Amp and Electric Current

An “amp,” short for ampere, stands as a unit that gauges the flow of electric current. It essentially measures how rapidly the electric current travels through a circuit. In the context of EV charging, this measurement is crucial because it impacts how quickly your electric vehicle can recharge.

Why Amps Matter in EV Charging

In EV charging, the number of amps signifies the charging capacity of a charger. Here’s why it matters:

• Charging Speed: A charger with higher amps can deliver more electricity in a shorter amount of time. This translates into faster charging sessions for your vehicle.
• Compatibility: Not all EVs and chargers support the same amp levels. It’s vital to ensure compatibility to maximize efficiency and safety.
• Variable Rates: Some chargers offer adjustable amp settings, allowing users to select a suitable charging speed based on their power source’s capacity.

Common Amp Ratings for EV Chargers

• Level 1 Chargers: These typically operate at lower amp levels, usually around 12-16 amps, and are ideal for overnight charging at home.
• Level 2 Chargers: More commonly used for faster home or public charging, offering 30-50 amps or more.
• DC Fast Chargers: For rapid charging, often at public stations, these can exceed 100 amps, significantly reducing charging time.

Understanding amps and their role in EV charging helps both seasoned EV owners and newcomers optimize their charging strategy, ensuring both efficiency and compatibility with their vehicle’s capabilities.



What is an eTrunk and where is it located in an electric vehicle?

Understanding the eTrunk: What Is It and Where Is It Located in an Electric Vehicle?

An eTrunk is a smart storage solution found in many electric vehicles, situated at the front where traditional car engines usually reside. Thanks to the absence of a conventional engine and transmission, electric vehicles have a spacious area available at the front, which manufacturers have ingeniously transformed into an additional storage compartment.

This area is frequently referred to as a “front trunk” or “frunk” across the automotive industry. Major manufacturers, like Ford with its Mustang Mach-E, Tesla with its Model S and Model 3, and Rivian with its R1T, have embraced this innovative feature, providing drivers with extra storage space that enhances practicality and convenience.



What does ICE stand for and how does it differ from electric vehicles?

Buckle up! We’ve got another round of EV lingo that you’ll be encountering sooner than you think! Whether you’re pondering a retrofit or giving your OEM electric ride a makeover, these terms and acronyms are equally essential. But don’t fret. We’re making this as simple as possible. Working on EVs isn’t necessarily more complicated than ICEs, it just requires a little extra protection.

ICE vs. EV: Understanding the Difference

Let’s dive into one of the classic automotive terms: ICE, which stands for Internal Combustion Engine. This powerhouse is fueled by diesel or gasoline, making it the reliable go-to for over a century. But times are changing, and so is the way we think about driving.

While ICEs ruled the roads, electric vehicles (EVs) are now steering us toward a greener future. Unlike ICEs, EVs run on electricity stored in batteries, offering a cleaner alternative. So, as you navigate this evolving landscape of automotive technology, remember that the fundamental difference lies in the energy source.

With this knowledge in your back pocket, you’re ready to explore the exciting world of EVs, equipped with both the old and new lingo. Whether sticking with the familiar hum of an ICE or embracing the silent glide of an EV, understanding these terms will be your first step in making informed decisions.



What was the historical significance of internal combustion engines?

Internal combustion engines were the dominant vehicle technology for more than a hundred years.



What powers an internal combustion engine?

An internal combustion engine is powered by fuels like diesel or gasoline.



What does “ICE” stand for?

“ICE” refers to an internal combustion engine.

---
